DM164120-1 -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

DM164120-1

仓库库存编号：

1439837

技术数据表：

(EN)

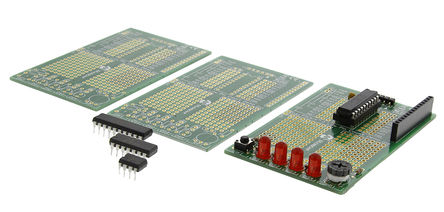

The DM164120-1是一个small demo电路板 with a PIC16F690 on电路板和a small 原型区域. Use it with a PICkit 2 to program your code via the 6引脚ICSP针座 on the电路板. The low引脚count demo电路板 works with the PICkit 2微控制器编程器 to help the user get up to speed quickly using PICmicro微控制器s. The low引脚count demo电路板 comes preprogrammed with a演示 program. To use this program, connect the PICkit 2新手套件to the PC's USB端口 using the USB cable. Start the PICkit 2微控制器编程器 application和check the target power box. The demo program will blink the four red lights in succession. Press the Push Button Switch, labeled SW1,和the sequence of the lights will reverse. rotate the 电位器, labeled RP1,和the light sequence will blink at a different rate.

• 支持8引脚DIP闪存设备
• 支持14引脚DIP闪存设备
• 支持20引脚DIP闪存设备
