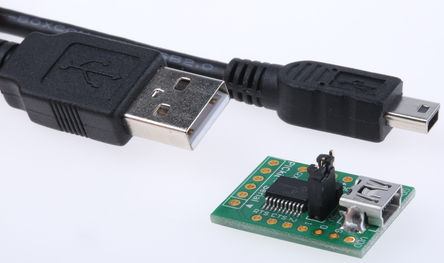

ADM00393 is a MCP2200 breakout module which provides a development and evaluation platform for the USB to UART (Universal Serial Bus to Universal Asynchronous Receiver/Transmitter) serial converter MCP2200 device. The module is comprised of a single Dual In-Line Package (DIP) form factor board. The MCP2200 is a USB to UART serial converter which enables USB connectivity in application that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256bytes of integrated user EEPROM. The MCP2200 has eight general purpose input / output pins. Four of the pins have alternate functions to indicate USB and communication status.
UART Tx and Rx signals
UART RTS and CTS signals
8 general purpose lines configurable for GPIO or dedicated function operation
User selectable power supply of 3.3V or 5V (up to 500mA) by using a jumper
DIP form factor (0.6inches overall row spacing between pins)
PICkit serial analyzer header used for UART communication only
(EN)
