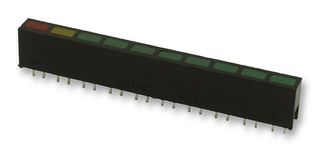

The SSA-LXH1025G8Y1I1D from Lumex is a through hole, diffused multicolour 10 element LED array bar. The LED position from 1 to 8 in LED bar are of green colour, 9th LED is yellow and 10th is of red colour.
Forward voltage of 2.0V for red, 2.1V for yellow and 2.2V for green
Forward current (If) is 20mA
Luminous intensity of 15mcd for red, 10mcd for green and 10mcd for yellow
viewing angle of 110°
Power dissipation of 105mW
Peak wavelength of 635nm for red, 565nm for green and 585nm for yellow
