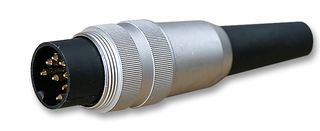

The SV80 is a 8-way straight DIN Plug with pre-silver-plated/gilded CuZn contact pins, threaded joint, solder terminals and 4 to 6mm cable diameter. PA GF body, PC sleeve, pre-nickel/tin-plated CuZn grounding spring, nickel-plated CuZn housing, nickel-plated CuZn knurled screw, nickel-plated St strain relief and screw. The DIN plug with long kink protection.
- 60VAC Voltage rating
- 5A Current rating
- 1012R Insulation resistance
- IP40 Protection rating
- Plug according to IEC 60130-9
