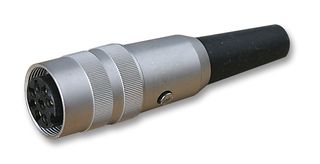

The KV81 is a 8-way DIN straight Circular Socket with pre-silver-plated and gilded CuZn contact bush, threaded joint according to IEC 60130-9, solder terminals and 4 to 6mm cable diameter. PA GF body, PC sleeve, pre-nickel CuZn and tin-plated grounding spring, nickel-plated CuZn housing, nickel-plated CuZn knurled nut and nickel-plated St strain relief and screw. The circular socket with long kink protection.
- 60VAC Voltage rating
- 5A Current rating
- 1012R Insulation resistance
- <=5mR Contact resistance
- Socket according to IEC 60130-9
- IP40 Protection rating
