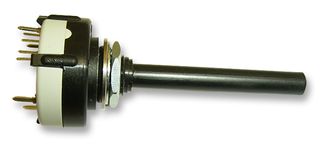

The BCKS1002 is a binary coded Rotary Switch with adjustable stop to restrict number of positions or continuous rotation. Brass alloy contacts with silver plated terminals. >10000 Cycles lifetime, >999M at 500VDC (initial) insulation resistance, <50m (initial) contact resistance, standard 4.7±0.5cNm nominal operating torque and 0.8Nm nominal end stop torque.
Panel sealed IP65 rating
Standard 22.5° indexing
Binary coded Hexadecimal and complimentary versions
