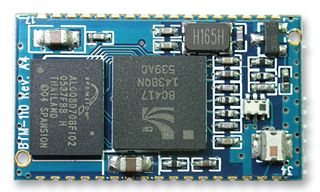

LM072 is an Bluetooth module for long range 100m class 1. This module is CSR BC04 class 1 module with no antenna. Operating voltage range is from 3.0V to 3.6V and an operating data range of up to 100m. This module is provided with Bluetooth v2.0+EDR compliant SPP firmware and can be configured using our set of AT commands sent over UART.
Used in LM Technologies Ltd Bluetooth Serial Adapters
Bluetooth v2.0 + EDR compliant backward compatible with Bluetooth v1.2/1.1 specification
Full Bluetooth Data rate up to 3Mbps
Class 1 Radio with 100m range in open space
AT Command Set provided for module configuration
Tried and tested module as LM Technologies Ltd uses this module in our own Serial Adapters
Ideal for embedded systems
Excellent solution to integrate wireless connectivity to a product for long range connectivity
