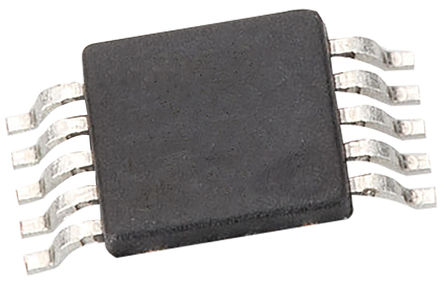

The LTC2990IMS#PBF is a quad I2C voltage, current and Temperature Monitor used to monitor system temperatures, voltages and currents. Through the I2C serial interface, the device can be configured to measure many combinations of internal temperature, remote temperature, remote voltage, remote current and internal VCC. The internal 10ppm/°C reference minimizes the number of supporting components and area required. Selectable address and configurable functionality give the LTC2990 flexibility to be incorporated in various systems needing temperature, voltage or current data. The LTC2990 fits well in systems needing sub-millivolt voltage resolution, 1% current measurement and 1°C temperature accuracy or any combination of the three.
- Measures voltage, current and temperature
- Measures two remote diode temperatures
- ±0.5°C Accuracy, 0.06°C resolution (typical)
- ±1°C Internal temperature sensor (typical)
- 14-bit ADC measures voltage/current
- Four selectable addresses
- Internal 10ppm/°C voltage reference
