LTC2955IDDB-1#TRMPBF -

制造商：

LINEAR TECHNOLOGY LINEAR TECHNOLOGY

制造商产品编号：

LTC2955IDDB-1#TRMPBF

仓库库存编号：

2097937

技术数据表：

(EN)

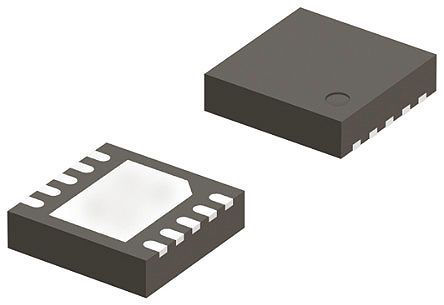

The LTC2955IDDB-1#TRMPBF is a Pushbutton On/Off Controller with automatic turn-on function. The micropower pushbutton controller manages system power by generating a clean enable output from the supply monitor input and the debounced pushbutton input. It features an interrupt output that notifies the system of a pushbutton or low supply event. When the system is ready, it may use the power kill input to shut off power. If the pushbutton remains pressed for more than the configurable turn-off duration, the system power is forced off. The supply input covers a wide range from 1.5 to 36V. The robust pushbutton input handles wide voltage swings of ±36V and ESD strikes to ±25kV (human body model) without latch-up or damage. A low 1.2μA supply current maximizes battery run time. Separate versions are available for positive or negative enable polarities.

• Automatic turn-ON via voltage monitor input
• Low leakage EN output allows DC/DC converter control
• Simple interface allows graceful μP shutdown
• Adjustable turn-OFF timer
• ±25kV ESD HBM on PB\ input
• ±36V Wide input voltage for PB\ input
