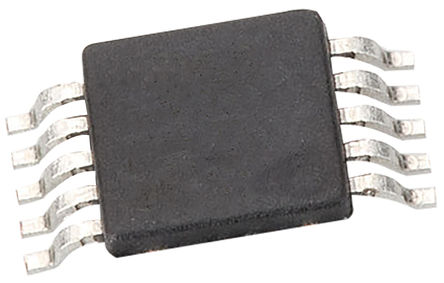

The LTC2411IMS#PBF is a micropower 24-bit differential sigma-delta Analog-to-digital Converter (ADC) with an integrated oscillator. Through a single pin, the ADC can be configured for better than 110dB differential mode rejection at 50/60Hz±2%. The ADC is identical when driven by an external oscillator. The internal oscillator requires no external frequency setting components. The converter accepts any external differential reference voltage from 0.1V to VCC for flexible ratiometric and remote sensing measurement configurations. The full-scale differential input range is from -0.5 to 0.5VREF. The reference common mode voltage, VREFCM and the input common mode voltage, VINCM, may be independently set anywhere within the GND to VCC range of the ADC. The DC common mode input rejection is better than 140dB. The ADC communicates through a flexible 3-wire digital interface that is compatible with SPI and MICROWIRE protocols.
- Low supply current
- Differential input and differential reference with GND to VCC common mode range
- Internal oscillator - no external components required
传感与仪器, 消费电子产品, 测试与测量, 自动化与过程控制
