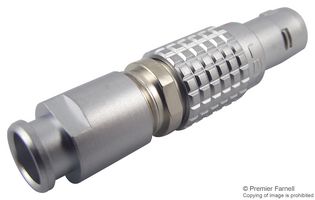

The FGG.0B.302. CLAD52Z from Lemo is a 0B series multipole circular straight plug connector with 2 pin contacts. It has keying system for connector alignment. It also has cable collet and nut for fitting bend relief. This circular connector is specifically designed for indoor applications.
Rated current of 10A
Chrome plated brass outer shell and collet nut
Nickel plated brass latch sleeve and mid pieces
PEEK (polyetheretherketone) insulation
UL recognised and CE marked
Cable fixing diameter from 4.3mm to 5.2mm
IP50 protection index (mated)
High temperature range from -55°C to 250°C
Maximum solid and stranded conductor size is 22AWG (0.34mm2)
