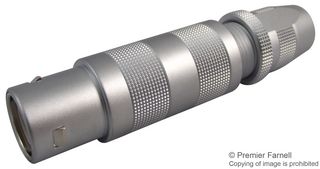

The FFB.3S.415.CLAC57 is a 1-way Circular Connector, 0S series, straight plug with cable collect. Chrome-plated brass shell and collect nut, nickel-plated brass latch sleeve and mid pieces. Push-pull self-latching system with one straight solder contacts. The modular design of the 0S series connector offers a solution for most applications. The push-pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- IP50 Protection rating
- 5000 Maximum matings
- 360° Screening for full EMC shielding
- 1 Low voltage insert configuration
工业, 车用, 通信与网络, 医用, 测试与测量, 国防, 军用与航空
