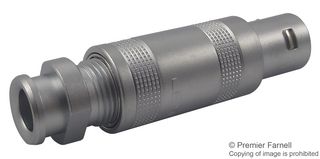

The FFA.1S.304.CLAC52Z is a 4-contact standard self-latching Circular Connector with hermaphroditic insulator in the multi-pole version and male solder termination. The circular connector is perfectly screened and designed to guarantee very low resistance to shell electrical continuity, particularly adapted to applications where electromagnetic compatibility (EMC) is important.
- Security of push-pull self-latching system
- 360° Screening for full EMC shielding
- Polarisation by stepped insert (half-moon) fitted with male contacts
- PEEK insulator
- >5000-cycle Endurance
- 4.8mR Maximum resistance
- >1000h Salt spray corrosion test
- 4.2 to 5.2mm Cable fixing
- IP50 Protection rating
- Nut for fitting a bend relief
- -55 to +250°C Temperature range
