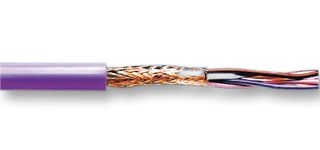

The 2170204T from Lapp Kabel is a UNITRONIC bus long distance cable. It is suitable for multiple bus systems based on RS485/RS422. It is used for fixed installation in bus systems such as Modbus, SUCOnet P, Modulink P, VariNet-P.
CPR: Not Yet Qualified
Outer diameter of 7.1mm
Copper index of 28Kg/Km
2 x 2 pairs and 0.22mm2 per conductor
Maximum electromagnetic screening
PVC sheath
Violet (RAL 4001) colour jacket
UL, CSA and VDE approved
Temperature range from -40°C to 80°C (fixed installation) and -5°C to 70°C (flexing)
