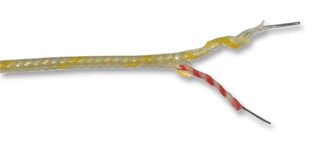

The WK-351-ANSI X 25M is a 25m yellow glass fibre insulated Extension Cable for use with KX-type thermocouple. Glass fibre insulated with glass fibre overall and silicone varnished throughout.
Glass fibre insulated flat pair construction
Conductors laid flat
Good temperature resistance but not suitable where fluids are present
Available in solid 1/0.3mm conductors
Tolerance class 2 to ANSI MC96.1
-60 to 350°C Insulation rating (short periods up to 400°C)
