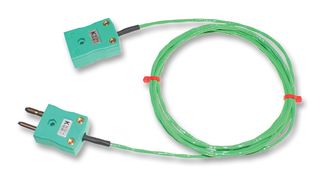

The EXT-K-C85 series IEC Thermocouple Extension Leads PFA/SSOB/PF fitted with plug and socket. It provides good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids. The conductors PVC insulated and twisted together, stainless steel braided screen, overall PFA sheath.
PFA insulated and screened
Twisted cores and screened construction for reduced electrical noise
Thermocouple extension types for K
Stranded 7/0.2mm conductors
2 and 5m Lengths
Insulation rating -75 to 260°C
Colour code (cores and jacket) to IEC-584
All contacts are polarised to ensure correct connection
