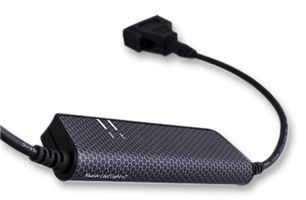

The 00685-0 Kvaser Leaf Light HS V2 is a high speed USB to CAN interface module. This module features as one of the easiest and low cost methods of connecting a computer to a CAN bus network with its USB 2.0 compliant connector and 9pin D SUB connector. The Leaf Light HS V2 is sleek, galvanic isolated, ergonomically designed housing robust for everyday use and offers loss free transmission and reception of standard and extended CAN messages on the CAN bus. Data transmitted with a time stamp precision of 100 microseconds. All Kvaser CAN interface boards share a common software API, programs written for one interface type will run without modifications on the other interface type.
8000 messages transmitted per second
Supports both 11bit (CAN 2.0A) and 29bit (CAN 2.0B active) identifiers
High speed CAN connection (compliant with ISO 11898-2), up to 1Mbit/s
Galvanic isolation for enhancing protection from power surges or electrical shocks
Low current consumption (70mA) reduces power drain from your laptop
Local buffering & pre-processing results in high performance and reduction of time critical tasks
