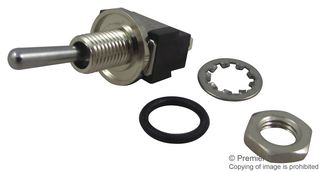

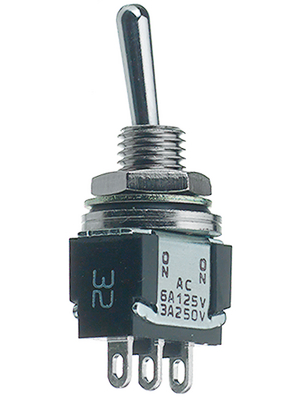

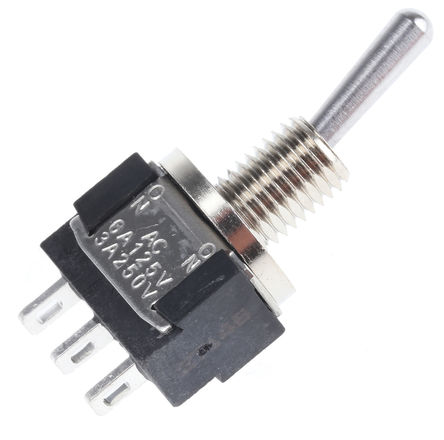

The MTE106D is a single-pole double-throw (SPDT) waterproof Miniature Toggle Switch with silver-plated copper alloy solder tag terminal and ON-ON function. The MTE series switch has black UL94V-0 diallyle-phthalate case. It supports bushing M6 x 0.75 locking through flat bush, 9mm key mounting.
<10mR Maximum contact resistance
>1000MR at 500VDC Insulation resistance
1500V, 50Hz for duration of 1 minute Dielectric strength
