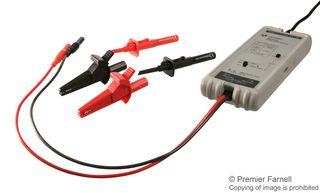

Use the N2791A 25-MHz low-cost high-voltage differential probe to make safe and accurate floating measurements with an oscilloscope. The N2791A differential probe allows conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to 700 V of differential voltage and common mode voltage. The probe is compatible with any oscilloscope with 1 MR BNC input. The probe power is supplied by included 4x AA batteries or USB host port of the scope or PC via a supplied USB power cable.
25 MHz bandwidth
User-selectable attenuation settings of 10:1 or 100:1
Rated to measure differential and common mode voltage up to ±700 V at 100:1 mode
Powered by included 4x AA batteries or USB host port of scope or PC
