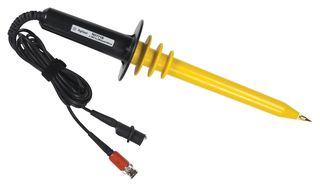

The Keysight N2771B is a 1000:1 divider probe for the measurement of fast high voltage signals, up to 30 kV dc + peak ac, 10 kV rms. The probe's large size and rugged construction provides superior protection. The ground lead is fed through the body of the probe and protrudes behind the safety barrier, keeping the ground connection away from the high voltage. Typical applications include PMT's, motor drives, high voltage switches, magnetrons and modern projection systems.
- Ideal for measuring up to 30 kV dc + peak ac
- Bandwidth: 50 MHz (-3 dB)
- Risetime: less than 7 ns
- Attenuation ratio: 1000:1
- Input resistance: 100 M ohm (when terminated into 1 M ohm)
- Input capacitance: 1 pF
