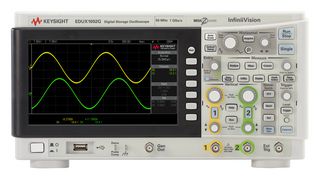

The EDUX1002G from Keysight Technologies is an InfiniiVision 1000 X-series 50MHz, 2 channel oscilloscope with function generator. Educator resources are included standard and this EDU model is especially good for students and beginners. With the unique, Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 1000 X-series delivers up to 50,000wfms/sec. Waveform tools include quick access to waveform math like FFT, add, subtract, multiply and divide. Reference waveforms allow quick comparison of stored waveforms. External trigger can be used as a 3rd channel and displayed on-screen to create a bus-type display. Built-in WaveGen supports sine, square, ramp, pulse, DC and noise with amplitude and frequency modulation. The built-in function generator enables to generate signals user needs to quickly stimulate design. Signals are easily synchronized for measuring stimulus/response testing including frequency response analysis (Bode gain and phase).
- 2 analogue channels and 1 digital channel
- Maximum sample rate is 1GSa/s
- Maximum memory depth is 100Kpts
- 7inch TFT LCD WVGA display
- Calculated rise time (10 to 90%) is <= 7ns
- Built-in USB host and USB device ports make PC connectivity easy
- Access 24 built-in automatic measurements
- Test quickly and easily with a simple, intuitive user interface and built-in help & training signals
- Dimension is 314mm (12.4 in) x 165mm (6.5 in) x 130mm (5.1 in)
- UL61010-1 3rd edition, CAN/CSA-C22.2 no. 61010-1-12 safety standard
