The DSOX2COMP is a computer serial Triggering and Analysis (RS232/UART) for InfiniiVision 2000 X-series oscilloscopes displays responsive, time-aligned, on-screen decode of RS-232/422/485 and other UART serial buses. The RS232/UART trigger and decode provides triggering capabilities on specified transmit or receive values, as well as on parity errors. Trigger on and acquire RS-232/422/485/UART signals using either scope or logic channels. Hardware-based decode means the scope stays responsive and fast when decode is turned-ON. Real-time counters continually count transmit and receive frames and errors.
Protocol trigger and hardware-based protocol decode

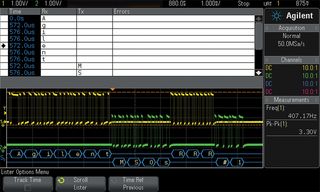

On-screen protocol decode in binary, HEX or ASCII
On-screen protocol decode time-corrected with the serial data waveform
