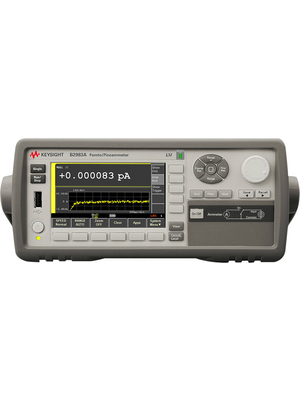

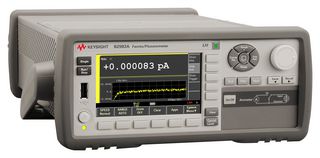

The B2983A is a Femto/Picoammeter not only offers best-in-class measurement performance, but also provide unprecedented features to maximize measurement confidence. The femto/picoammeter offers 0.01fA (10?1?A) minimum current resolution, which meets virtually all existing and future low-level current measurement needs. The femto/picoammeter has battery powered versions to eliminate AC power line noise. This available capability provides an unmatched level of noise reduction, enabling low-level measurements that were previously impossible.
0.01fA (10?1?A) Minimum measurement resolution
2pA to 20mA current measurement ranges with 6.5 digits resolution
<20μV Burden voltage in its lowest current range
High speed reading rate up to 20,000rdg/s
Battery operation models for line noise-free measurements
Graphical viewing modes (meter, graph, histogram and roll view)
Easy-to-use auto navigation to select optimal range and aperture
Optional test setup integrity checker function for noise source isolation
