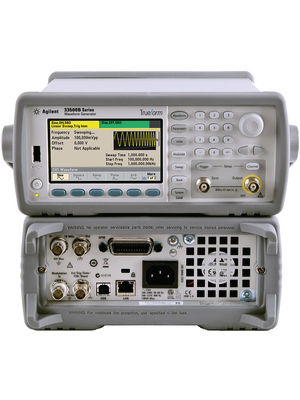

The 33500B Series waveform generators offer the common signals and features you expect, such as modulation, sweep, and burst. But the 33500B Series offers many more features that give you the capabilities and fl exibility you need to get your job done. Like an intuitive front-panel user interface that makes it easy to quickly relearn it when you've been focused elsewhere. Like built-in LAN, USB and GPIB interfaces that make it easy to control your instruments or transfer your waveforms to your instrument.
- 20 MHz, 1-channel
- Set leading and trailing edge times independently
- Sum two signals together, frequency and amplitude independent 2-tone, square-sine, noise on pulse
- Create up to 1 million samples standard, 16 million optional
- Connect arbs together, create up to 512 sequences
- Lowest voltage range at 1 mVpp, a 10x improvement
- Set high and low voltage limits to prevent overload on DUT
- Provides standard PRBS patterns, PN7 … PN23
- Select PN type, set bit rate, set edge time
