2636B -

源测量单元, 数字源表, ± 200mV至± 200V, ± 1nA至± 10A, 60 W

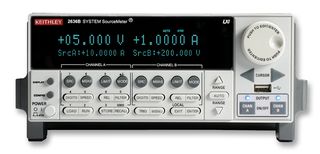

KEITHLEY 2636B
声明:图片仅供参考,请以实物为准!
制造商产品编号:
2636B
仓库库存编号:
2249952
技术数据表:
(EN)
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!


数据正在加载中...

2636B产品概述

The 2636B SourceMeter SMU instrument, is a new and improved two-channel SMU instrument with a tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to automated production test. The wide range of 1.5A DC, 10A pulse, 200V, and 0.1fA measurement resolution output makes it ideal to test a wide range of lower current devices and materials. In addition to retaining all the features of the Model 2636A, the Model 2636B has 6?-digit resolution, USB 2.0 connectivity, and software command emulation of the Model 2400 SourceMeter SMU Instrument that enables easy migration of legacy test code. The Model 2636B is equipped with Keithley's high speed TSP technology (over 190% faster than traditional PC-to-instrument communication techniques,) which dramatically improves the system-level speed to lower the cost of test.
  • Dual channel model with 60W power output (30W/channel)
  • 4 quadrant source/measure with 6? digit resolution
  • Current Max/Min: 1.5A DC,10A pulse/0.1fA
  • Voltage Max/Min: 200V/100nV
  • Built-in "Plug & Play" Java-Based I-V characterization and test software
  • TSP (Test Script Processing) technology embeds complete test programs inside the instruments
  • TSP-Link expansion technology for multi-channel parallel test
  • Software emulation for Keithley's Model 2400 SourceMeter? SMU Instrument
  • Large, easy-to-read, dual line display

传感与仪器, 信号处理, 测试与测量

2636B产品信息

  产品范围  2600B Series
  源计功能  电流-电压源/电流-电压-电阻测量
  输出功率  60W
  源电压范围  ± 200mV 至 ± 200V
  源电流范围  ± 1nA 至 ± 10A
  电阻测量范围  500nohm 至 10pohm
  质量保证  1年
关键词

2636B关联产品

参考价格及参考库存
电话:400-900-3095
QQ:800152669

2636B产地与重量

原产地:
China

进行最后一道重要生产流程所在的国家

税则号:
85432000
重量(千克):
7.26
