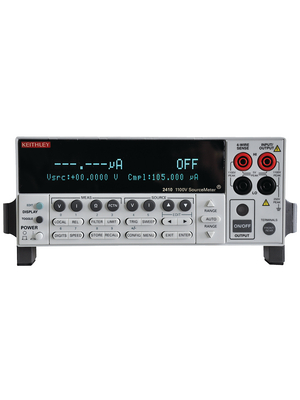

The 2410-C High Voltage SourceMeter is a 20W instrument that sources and measures voltage from ±5μV (source) and ±1μV (measure) to ±1100V and current from ±10pA to ±1A. With its higher voltage sourcing range, the Model 2410-C is an excellent choice for resistors and voltage coefficient testing, varistors, and high voltage diodes, including switching, zener, RF diodes, and rectifiers. The Model 2410-C is able to measure 20mA while sourcing 1100V, providing the extra resolution needed for precision testing of these devices. The Contact Check function makes it simple to maximize test integrity by verifying test connections easily in just 350μs before an automated test sequence begins. This eliminates measurement errors and false product failures associated with contact fatigue, breakage, contamination, loose or broken connection, relay failures, etc.
- 在350μs内完成接触检测验证与报告
- 可通过前面板或远程GPIB进行接触检测
- 集成"记忆"可编程序列器可存储多达100种不同测试
- 坚固的设计和75,000小时MTBF提高了不间断生产环境中的可靠性
- 内置比较器简化通过/失败测试
- 数字式输入输出用于快速挑拣
- 0.012%基本精确率和5-1/2位分辨率
