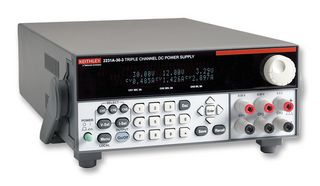

The Model 2231A-30-3 Triple Channel DC Power Supply can output a total of 195W of power, providing the power levels needed to energize a wide range of circuits and devices for benchtop work. Two channels can supply up to 30V at 3A each; the third channel can provide up to 5V at 3A. The Model 2231A-30-1 does not compromise on performance or convenience features, offering the versatility and ease of use you need, so it can be the only DC power supply on your bench.
Get three isolated, independent, and adjustable outputs in one instrument
Output a total of 195W of power with two 30V@3A outputs and one 5V@3A output
Set voltage outputs with 0.06% basic accuracy and current outputs with 0.2% basic accuracy
Output DC power with less than 5mVp-p noise
Display voltage and current measurements continuously from all three outputs
Double output levels by connecting the two 30V channels in series or parallel
Store frequently used configurations in any of 30 setup memory locations
Turn off any output after a predetermined test time with each channel's output timer
Control the supply from a PC with an optional USB adapter
