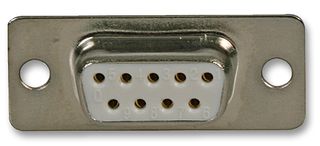

The DE9SF from ITW Mcmurdo is a standard D series, high performance 9 position D sub receptacle connector with DE shell size. Standard D series connectors provide greater user flexibility and meet the most demanding requirements. This connector has UL94 V-0 rated thermoplastic insulation.
Zinc/yellow passivated steel shell for EMI/RFI shielding
Copper alloy contacts with hard acid gold plating
Solder bucket termination
Standard fixing holes
High temperature range from -55°C to 105°C
Current rating of 6.5A for individual contact (in isolation) at 70°C
Current rating of 3.3A for all contacts (simultaneously) at 70°C
