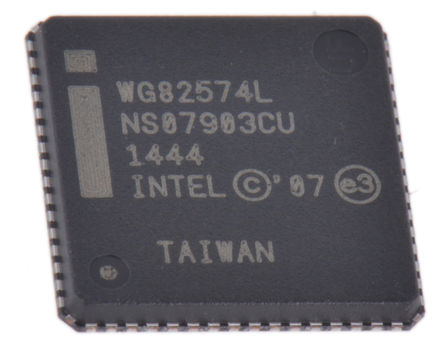

The WG82574L S LBA9 is a single compact low power GbE Controller that offer a fully-integrated Gigabit Ethernet Media Access Control (MAC) and Physical Layer (PHY) port. The 82574L uses the PCI Express* (PCIe*) architecture and provides a single-port implementation in a relatively small area so it can be used for server and client configurations as a LAN on Motherboard (LOM) design. The 82574 family can also be used in embedded applications such as switch add-on cards and network appliances. External interfaces provided on the 82574 are PCIe Rev. 1.1 (2.5GHz) x1, MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASETX and 10BASE-T applications (802.3, 802.3u and 802.3ab), NC-SI or SMBus connection to a Manageability Controller (MC) and IEEE 1149.1 JTAG (note that BSDL testing is NOT supported). The 82574L provides one PCIe lane operating at 2.5GHz with sufficient bandwidth to support 1000Mbps transfer rate.
Compliant with the 1Gbps Ethernet 802.3
802.3u 802.3ab Specifications
10/100/1000Mbps Multi-speed operation
Full-duplex operation at 10/100/1000Mbps
Half-duplex operation at 10/100Mbps
Flow control support compliant with the 802.3X specification
VLAN support compliant with the 802.3q specification
Configurable LED operation for OEM customization of LED displays
Statistics for management and RMON
MAC loopback
Host interface - PCIe interface to chipset
NC-SI over RMII for remote management core
SMBus advanced pass through
Configurable receive and transmit data FIFO, programmable in 1kB increments
TCP segmentation capability compatible with NT 5.x TCP Segmentation Offload (TSO) features
Supports up to 64kB TSO (TSO v2)
Fragmented UDP checksum offload for packet reassembly
IPv4 and IPv6 checksum offload support (receive, transmit and TSO)
Split header support
Receive side scaling (RSS) with two hardware receive queues
