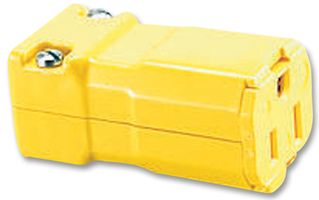

The HBL5969VY is a 2-pole 3-wire NEMA 5-15R Valise? Plug with nylon housing and Noryl cord clamp. Powerful cord grips prevent conductor slippage and strain on wiring terminals. The unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened. Maximum 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
0.040" (1.0) Phosphor bronze power contact
#8-32 Steel (copper or nickel finish) terminal screw
#8-32 Steel (green finish) ground screw
Withstands 2000V minimum dielectric voltage
#18 to #12AWG Copper stranded conductor terminal accommodation
