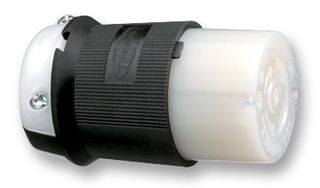

The HBL2813 is a 4-pole 5-wire 3-phase 30A 120/208VAC Y-type Twist-Lock? NEMA L21-30R Insulgrip? Grounding Connector, made of black and white nylon body, brass contacts, #10-32 Phillips/slotted/Robertson screw terminals and 9 to 29mm cord diameter.
UL 498 listed
HB or better per UL94 or CSA 22.2 No. 0.6 Flammability test
IP30 Moisture resistance
-40 to 75°C Operating temperature range
Ribbed nylon housing provides a secure grip and impact and chemical resistance
Superior cord grip design protects terminations from excess strain
Clear, funnel shaped wire entry for ease of termination
Integral dust shield protects wiring chamber from dust or contaminants
