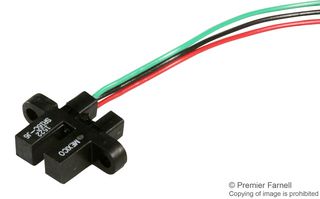

The SR16C-J6 is a hall effect digital Vane Sensor, designed for position and speed sensing. The SR16C-J6 sensor is tailored for fitness and information technology applications. They are well suited for use in moderate electrical, chemical and mechanical environments. The SR16C-J6 sensor contains an internal magnet and Hall effect sensor mounted in a twin tower configuration. The hall effect sensor provides highly accurate and repeatable performance in environments in which dirt, dust or stray IR light might affect the performance of optical solutions.
- Operated by a ferrous vane interrupter for pulse counting or position sensing
- Medium level magnetic switching to reduce stray field interference
- No mechanical contacts, eliminates product wear
- Noncontact position sensing
- 300.7mm (11.8") lead wires termination type
- -20 to 85°C operating temperature
- 10mA (maximum at 25°C) supply current
- 20mA maximum output current
- 10μA leakage current
