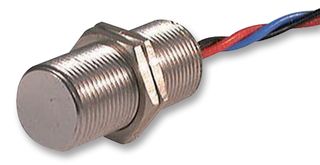

The 103SR12A-2 is a hall-effect Position Sensor with 22AWG gauge PVC insulated conductor and black moulded PVC jacket. The position sensor is completely sealed in threaded aluminium bushings and meets NEMA 3, 3R, 3S, 4, 4X, 12 and 13 requirements. Output can be directly connected to most electronic circuitry such as microprocessors, integrated logic, discrete transistors and SCRs with compatible voltage specifications.
- 10mA maximum supply current
- 20mA maximum output current
- -40 to 100°C operating temperature
