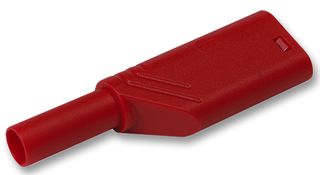

The LAS S WS series from Hirschmann are 4mm rigid spring loaded safety plugs. These are safety connectors for tower construction with screw connection for leads from 0.5mm2 to 1.5 mm2 and 4.2mm maximum lead outer diameter. Simple assembly by Click-System.
IEC 61010 CAT II measurement category
Screw termination
Rated voltage of 1000V
Rated current of 24A
Contact resistance is 10mohm
Nickel plated brass contact
Contact spring material is beryllium copper
UL 94 V-2 approved polyamide (PA) housing material
