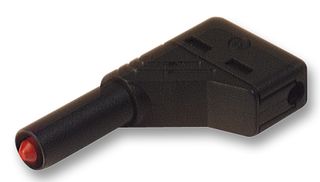

The 934098100 is a 4mm black Safety Plug, 24A/1000VAC/DC rated, nickel plated brass pin contact with copper-beryllium contact spring having screw as termination type. This LAS S W safety angled connector with screw connection for leads from 0.5mm2 to 1.5mm2, outer diameter of lead maximum 4.2mm with caged spring.
- Category III measurement according to IEC 61010 standard
- -15 to +70°C Rated temperature
- PA housing
- 10mR Contact resistance
