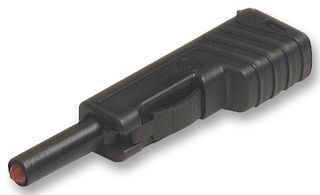

The 932153100 is a 4mm black contact Protected Plug, 30A 30VAC/60VDC rated, nickel-plated brass pin contact, copper beryllium contact spring, 4mm diameter, having screw as termination type. This SLS 200 plug with screw connection used for cables up to 2.5mm2, with onward connection capability (4mm socket), Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring.
- Category I measurement according to IEC 61010 standard
- -25 to +80°C Rated temperature range
- PP housing
- 5mR Contact resistance
