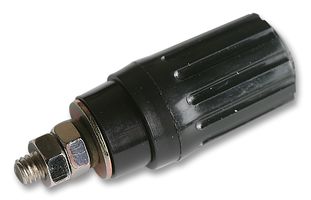

The 930757100 is a 4mm black Socket, 35A 30VAC/60VDC rated, pole terminal, captive insulated head, which is held under constant pressure against the insulated rings by a spring. 4mm diameter nickel-plated, brass threaded bolt with 2mm diameter transverse hole. This PKI 100 socket used for non-rotating installation in switch panels and equipment chassis with wall thickness up to 3.5mm, provide quick and uncomplicated connections.
- Category I measurement according to IEC 61010 standard
- Screw type mounting
- -25 to +100°C Rated temperature range
- PA housing
- 2mR Contact resistance
