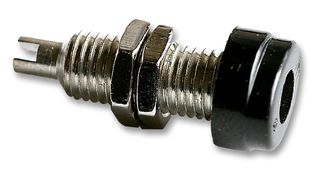

The 9301751001 is a 4mm black Receptacle Socket, 35A 30VAC/60VDC rated, oval insulated head with tin-plated brass socket, M6 thread and solder unsprung connection. This BUG 10 Schwarz socket used for installation in equipment chassis and switch panels till 8mm wall thickness, provide quick and uncomplicated connections.
- Category I measurement according to IEC 61010 standard
- Screw type mounting
- -25 to +85°C Rated temperature range
- PA housing
