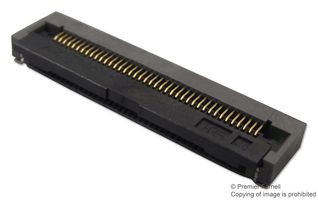

The FH28-40S-0.5SH(05) is a 40-position 1-row 0.5mm FPC/FFC ZIF Receptacle with LCP insulator, gold plated phosphor bronze contacts and pure tin plated brass metal fitting. The FH28 series connector has SMT horizontal mounting type. Multi-polarized connectors, reinforced body structure and high FPC retention produced by the following features, reliable connection created by its unique FPC/FFC positioning mechanism, prevents accidental disengagement with the design of its proprietary structure. The flip lock structure makes it easier to engage/disengage the actuator and reduces the required force needed to operate. A clear tactile click is delivered upon the successful completion of the mating process. Vertical retention force for the FPC/FFC is 2.5 times stronger than our 0.5mm pitch connector the FH12 series. Horizontal retention force for the FPC/FFC is 2 times stronger than our 0.5mm pitch connector the FH12 series.
