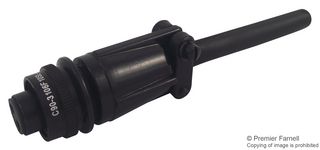

The C90-3106F10SL-4S is a 2-contact female Circular Connector with silver-plated contacts, straight plug with backshell and aluminium alloy, zinc with black chromate finish outer shell. A range of high reliability, rugged, circular connector to meets the high standards of MIL-DTL-5015. Designed for use in harsh and demanding environments, the high specification, cadmium and hexavalent chromium-free range features free plug, panel mount and cable connector orientations in a number of popular shell and layout options.
- Highly durable and rugged connector system
- Solder termination
- Full environmental sealing with use of backshells and sealing gaskets, exceeds IP67
- Threaded and polarised coupling
- Synthetic rubber insulator and grommet
- 13A Current rating
- 5000MR Minimum insulation resistance
- 16 to 22AWG Wire size
- 500-operation Durability
- -55 to +125°C Operating temperature
