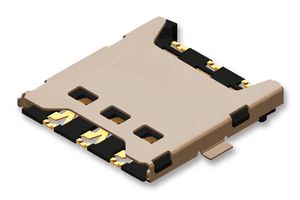

The SIM8050-6-0-14-01-A is a 6-contact black push-pull 4FF Nano SIM Connector with 15μinch gold plated phosphor bronze contacts, an UL94V-0 LCP housing and stainless steel (SUS301) metallic shell. The SIM7050 series connector has surface type PCB mount.
No switch, with locating peg
1.35mm Profile
0.5A Maximum current rating
30V Maximum voltage rating
100mR Maximum contact resistance
100mR Maximum contact resistance
200VAC for one minute Dielectric withstanding voltage
