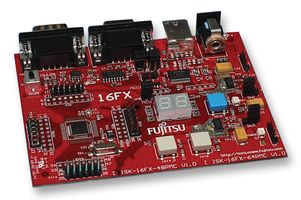

SK-16FX-48PMC是一个starter套件用于MB96F315RSA微控制器. This 低成本 评估电路板 is 基于16FX微控制器MB96310 串行. The微控制器on the电路板 is already preprogrammed with a simple application. It包括'EUROScope lite 16FX', an exclusive version source level 调试器 用于16FX 系列. The sophisticated user 接口helps keep track of every important piece of information: windows can be docked to the edge of main window和don't obscure important data. Multi threading 使得user 接口高度 responsive extremely easy to work with. The 16FX 系列 支持 片上debugging. The微控制器can be connected directly to the Host PC via a serial RS232 or USB 接口. Since an 片上硬件模块和the firmware (boot ROM) of the MCU 完整的ly implement the debug 功能ality, loading of kernels or linking of a library is not necessary. Therefore 100% of program存储器 is available 用于application.
