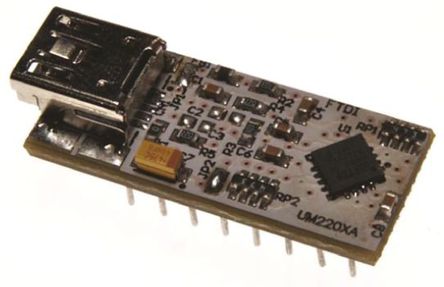

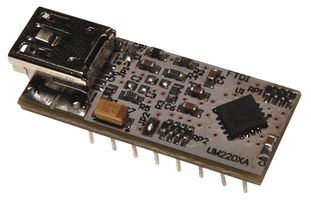

The UMFT220XA-01 is an USB to 4bit SPI/FT1248 DIP development module based on with a 0.3inch row pitch. It is fitted with a FT220XQ USB to 4bit SPI/FT1248 (only up to 4 bit wide) interface with a battery charger detection feature, which can allow batteries to be charged with a higher current from a dedicated charger port (without the FT220X being enumerated). In addition, asynchronous and synchronous bit bang interface modes are available. The internally generated clock (6MHz, 12MHz and 24MHz) can be brought out on the CBUS pin to be used to drive a microprocessor or external logic. The UMFT220XA-01 module is designed to plug into a standard 0.3inch wide 16 pin DIP socket. This development module has two solder links fixed to the top side of the PCB. These solder link can be adjusted by removing the solder linking the two PADs to produce an open or by placing a solder blob to produce a short.
- Small PCB assembly module designed to fit a standard 7.62mm (0.3inch) wide 16 pin DIP socket
- On board USB mini B socket allows module to be connected to PC via a standard A to mini B USB cable
- Functionally configurable using solder links
- Default solder links setup enables module to function without peripheral wires or application board
- Entire USB protocol handled on the chip, no USB specific firmware programming required
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full speed compatible
- Integrated power on reset circuit
- Device supplied preprogrammed with unique USB serial number
