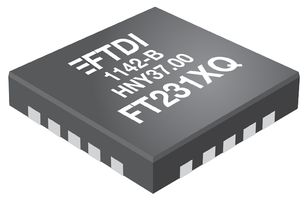

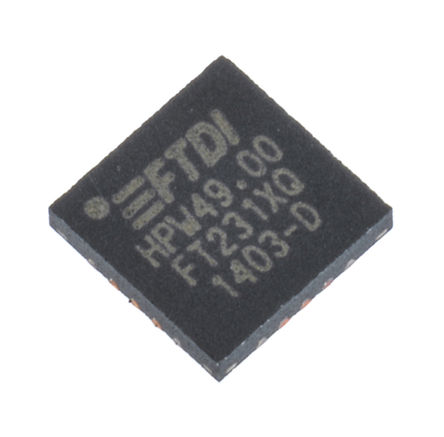

The FT231XQ is an USB2.0 Full-speed IC, offers a compact bridge to full handshake UART interfaces. The device is an UART, capable of operating up to 3Mbaud, with low power consumption (8mA). The IC includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
- Single chip USB to asynchronous serial data transfer interface
- Entire USB protocol handled on chip, no USB specific firmware programming required
- Fully integrated 2048-byte EEPROM for storing device descriptors and CBUS I/O configuration
- Fully integrated clock generation with no external crystal required
- Data transfer rates from 300baud to 3Mbaud
- 512-byte receive buffer and 512-byte transmit buffer utilising buffer smoothing technology
- FTDI's royalty-free virtual com port (VCP) and direct (D2XX) drivers
- Configurable CBUS I/O pins
- Transmit and receive LED drive signals
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
- Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
- Battery charger detection
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O
- True 3.3V CMOS drive output and TTL input
- Configurable I/O pin output drive strength
- Integrated power-on-reset circuit
- UART signal inversion option
- Internal 3.3/1.8V LDO regulators
