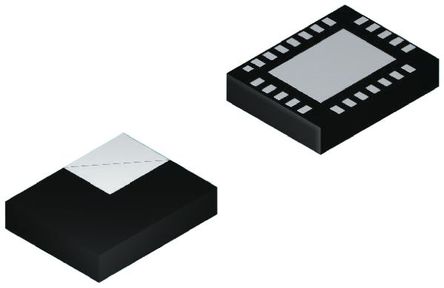

The FXLC95000CLR1 is an Intelligent, Motion-Sensing Platform with the integration of a 3-axis MEMS accelerometer and a 32-bit ColdFire MCU that enables autonomous, high-precision sensing solutions with local computing and sensors management capability in an open, easy to use, architecture. The FXLC95000CL hardware is user-programmable to create an intelligent high-precision, flexible, motion-sensing platform. The user's firmware, together with the hardware device, can make system-level decisions required for sophisticated applications. The FXLC95000 platform can act as an intelligent sensing hub and a highly configurable decision engine. Using the Master I2C or SPI module, the FXLC95000 platform can manage secondary sensors such as pressure sensors, magnetometers and gyroscopes.
- 3-axis low noise accelerometer - ±2g, ±4g, ±8g configurable
- Up to 16-bit resolution 3-axis accelerometer
- 32-bit Microcontroller unit with 128kB flash, 16kB RAM and 16kB ROM
- Sleep and low power modes to enable local power
传感与仪器, 测试与测量, 计算机和计算机周边, 医用, 安全, 消费电子产品, 成像, 视频和目视
