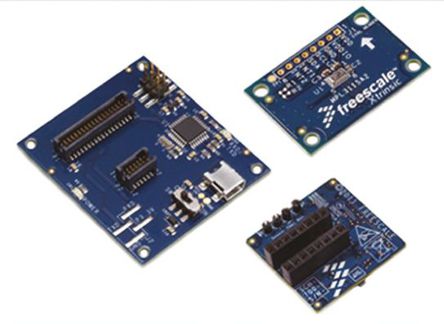

The DEMOSTBMPL3115A2 is a low cost development kit for the Xtrinsic MPL3115A2 pressure sensor. The MPL3115A2 provides highly precise pressure and altitude data with variable sampling rate capability. It has very low power consumption, smart features and requires zero data processing for mobile devices, medical and security applications. The Xtrinsic MPL3115A2 pressure sensor smart features include digital output, two interrupts for auto wake, minimum/maximum threshold detection and autonomous data acquisition. MCU usage can be limited since the MPL3115A2 pressure sensor can process sensor data locally, reducing communications required with the host processor.
- High accuracy altimetrer
- Internally compensated digital pressure (Pascals) and altitude (meters)
- On board intelligence with FIFO and configurable interrupts
- Variable output sampling rates
- Easily evaluate and demonstrate sensor functionality
- Unified architecture with the same GUI software
- Plug and play
- Flexible with a variety of boards that fit together
医用, 安全, 消费电子产品
