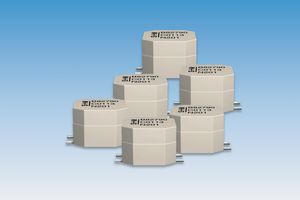

The B82790S0 series from EPCOS are common mode chokes. It functions the suppression of asymmetrical and symmetrical interference coupled on lines. The high frequency portion of symmetrical data signal are decreased until the EMC problems are reduced significantly.
- Current compensated ring core double choke
- Rated voltage of 42VAC (50/60 Hz) / 80VDC
- Ferrite core and sector winding
- Suitable for reflow soldering
- Automotive grade AEC-Q200 qualified
- PPS case (UL 94 V-0)
- 0.025mH and 0.051mH Inductance values available
- Rated current of 500mA
- 7.1mm x 6mm x 4.9mm case size
