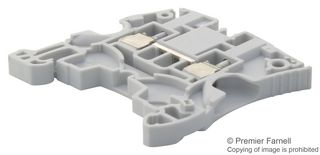

The 1SNK505010R0000 is a 2-way ZS4 grey Terminal Block with screw clamp. It saves space by connecting conductors up to 4mm2 12AWG in just 5.2mm spacing.
Feed-through function
Dimension of fuse terminal is 47.3mm x 53mm x 5.2mm (D x H x W)
Net weight of 8.8g
Rated voltage is 1000V and rated current is 32A
Ambient operation air temperature range from -55°C to 110°C
Polyamide (PA) insulating material
Pollution degree is 3
UL 1059 recognized and CSA certified
Flammability rating meets UL94 V-0, IP20 rated and NEMA1 protection
