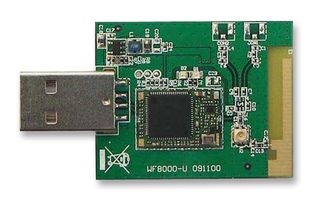

The WF8000-U WiFi MODULE is a USB based WiFi module relying on the WiFi IEEE 802.11 standards. It is applied to be used on all products which shall have USB interface. This module is highly integrated with MAC/BBP and 2.4GHz RF chip and builds a wireless network between PCs or some other terminals. It supports DevKit8000, DevKit8500D, DevKit7000, VSS3530 boards.
Wireless 802.11b/g standard
USB 2.0 host port interface
Dimension: 40mm x 31.8mm
Frequency band range from 2400MHz to 2500MHz
Frequency stability is less than ±5ppm at room temperature +25°C
OFDM and CCK modulation
OFDM output power of 15dBm typically at EVM<3% for all channel
RF port Impedance of 50L±10%
USB differential port impedance of 90L±10%
LO leakage peak power -64dBm typically at transmit state
