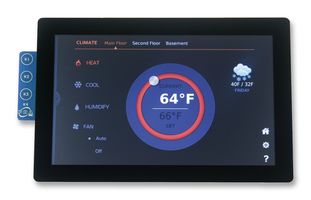

The PDA - TM7000 from Embest is a 7inch PCAP touch module. This touchscreen module offering best-in-class projected capacitance multi-touch functionality combined with a 7inch LCD panel. The module is configured for development and evaluation with several Atmel ARM-based EK solutions as well as development and integration with a custom host system. This module features host interface connectors (J4 and J5) position for direct installation on Atmel ARM-based EK boards.
Atmel maXTouch mXT768E touch controller, supports up to 10 touches
4 capacitive navigation keys
200 bytes non-volatile serial EEPROM
800 x 480 resolution display with <=30ms response time
